Industrial Sewing Troubleshooting Tips - Fixes for Skipped Stitches

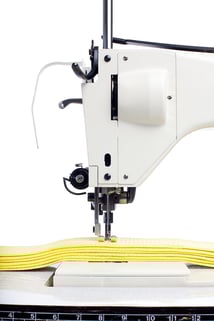

 Class 7 Industrial Sewing MachineAre skipped stitches causing you down time in your industrial sewing application?  Here are some tips to help find and correct the common causes of skipped stitches.

  • Check and make sure that machine is threaded correctly
  • Make sure machine is oiled properly and general maintenance has been done
  • Change the needle and make sure it is pushed all the way into the needle bar with the kerf/eye parallel to the hand wheel or slightly pointed towards incoming shuttle hook
  • Check timing of needle in relation to hook. Make sure the needle is rising back up when checking the timing. When the tip of the hook is beside the needle, the eye of the needle should be ~ 1/16” below the hook. The tip of the hook should also be very close to the needle, about the thickness of printer paper from the needle:

SkippedstitchSinger 7 timing needle

  • Make sure the tip of the hook is not damaged or sharpened more than a few times. Sharpening moves the timing, and eventually to the point of not being able to keep the machine sewing reliably.

Damaged hook vs new sewing

  • Make sure the throat plate/needle plate does not have an excessively large hole(pic on the right). The hole should be slightly larger than the needle and thread together.
  • Check the throat plate for warpage (pic on the left)

warped throat plateworn throat plate

  • Make sure the inner presser foot is holding the material sufficiently tight when needle is on its downward stroke

 presser foot sewing machine tension

  • Make sure the inner presser foot is not being rubbed by the needle

inner presser foot

  • Check the tension from the thread take-up spring. The spring should pull the thread back easily and quickly after pulling through the machine and releasing from one’s hand.

thread take up springtake up spring

  • Check thread tension on both top and bottom thread. Thread coming from the bobbin should be easy to pull from the case through the throat plate. Thread coming from the spool should be easy to pull from the operator’s side of the take-up lever. Excess tension can cause improper loop formation.
  • If skipping in one direction, check that the throat plate is not installed 180° off. Try sewing with the throat plate turned 180°. If skipping in that direction persists, the problem is elsewhere. If skipping changes direction, change the throat plate or if skipping is happening on the shorter side of the throat plate, lengthen the slot on that side. Below is a picture of a brand new throat plate:

new throat plate

  • Ensure that the feed dogs are not trying to move material just as the needle clears. If feed dogs lift and moves material too early, the thread will catch in the race or will not cinch tightly. If it stays in the race, it could cause a skipped stitch on the next stitch or cut threat.
  • Check that the needle bar is not bent. This requires taking the needle bar out of the machine. Find a very flat surface and lay the bar on it. Place hand on bar at about one third of the bar’s length. Roll the bar forward and back while watching the longer side for any wobble. Repeat for other side.

If problem persists and none of the points above resolve the issue, contact Service Thread for a consultation.
